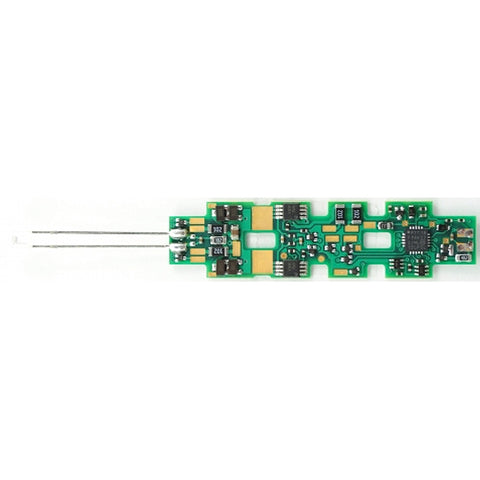

The K0D8 is a N-scale drop-in decoder for Kato locomotives. Examples include the following:

Kato:

• ALCO PA-1
• E5A
• E6A
• E8A
• E9A

See the Installation Pages for a full list of compatible engines!

Note: The K0D8 line of decoders are available with different lighting configurations. Pay special attention to the compatibility. The K0D8-E features 1 onboard super-bright, "Sunny White" LED with long leads in the forward direction.

Interface Type: Drop-In

Dimensions (L x W x H): 2.139" x 0.538" x 0.068" or 54.32mm x 13.67mm x 1.73mm

Scale: N Scale

Continuous/Peak: 1.0/2.0 Amp

Total Functions: 8

Function Rating: 80 mA

12V Outputs: 6

LED Outputs: 7

Onboard LEDs: 1
