Item Number: EFLM1400

Features

Extremely quiet and lightweight—just 2.5 ounces (72 g)
High-torque alternative to inrunner brushless motors

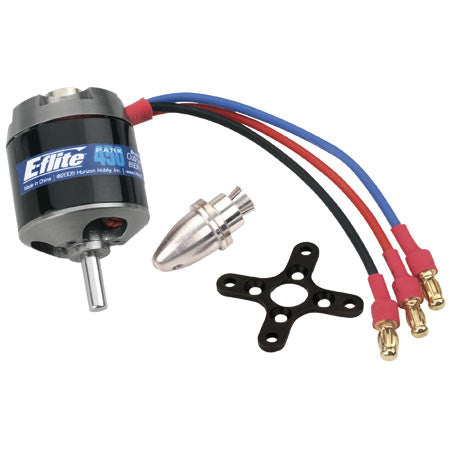

Includes mount, prop adapter and mounting hardware
External radial rotor design—4mm shaft can easily be reversed for alternative motor installation
Slotted 12-pole outrunner design
Ideal for 3D park flyers (15–25 oz) and scale park flyers (20–30 oz) using 2–3S 1200–2100mAh Li-Po batteries
Quiet, efficient operation

Overview

The Park 450 is ideal for 3D park flyers 15 to 25 ounces and scale park flyers 20 to 30 ounces, using 2S–3S 1200–2100mAh Li-Po battery packs.

It will provide sport 3D performance for a Mini Edge-size plane and great performance on the new E-flite® P-47.

Tech Notes

You will need...

20A brushless ESC
9x6–11x3.8 prop
2S–3S 1200–2100mAh Li-Po Battery

Specifications

Type: Brushless outrunner
Size: Replacement for 370 or 400
Bearings or Bushings: One 4 x 8 x 3mm Bearing, and One 4 x 9 x 4mm Bearing
Recommended Prop Range: 9x6 to 11x3.8 Slow Flyer or 10x5 to 12x6 Electric
Voltage: 7.2–12
RPM/Volt (Kv): 890
Resistance (Ri): .20 ohms
Idle Current (Io): .70A @ 8V
Shaft Diameter: .16 in (4mm)
Overall Length: 1.30 in (33mm)
Weight: 72 g (2.5 oz)
Overall Diameter: 1.10 in (28mm)
Diameter: 1.1 in (28mm)
Length: 1.3 in (33mm)
Continuous Current: 14A
Maximum Burst Current: 18A for 15 seconds
Cells: 2–3 Li-Po or 6–10 Ni-Cd/Ni-MH
Speed Control: 20A brushless ESC
