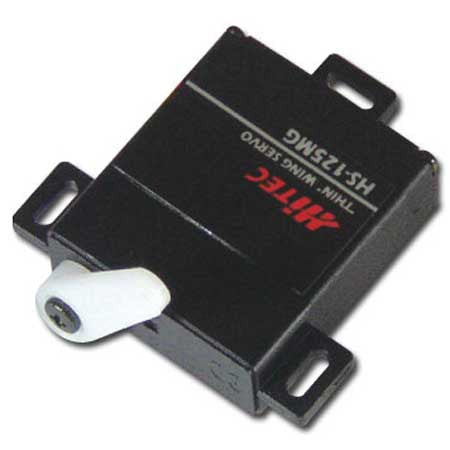

Item Number: HRC32125S

Size Category: Minis and Micros
Type: Analog
Application: High Performance Gliders
Torque: 41.7 oz-in (3.0kg-cm) @ 4.8V; 48.6 oz-in (3.5kg-cm) @ 6V
Speed: 0.17 sec/60 deg @ 4.8V; 0.13 sec/60 deg @ 6V, at no load
Length: 1.18 in (30.0mm)
Width: 0.39 in (10.0mm)
Height: 1.34 in (34.0mm)
Weight: 0.84 oz (24g)
Bushing Or Bearing: Bearing
Bearing: Dual
Motor Type: 3 Pole
Connector Type: Universal
Gear Type: Metal
Current Draw Idle: 7.4mA @ 4.8V; 7.7mA @ 6.0V
Voltage: 4.8V to 6.0V
Deadband: 5µs
