Item Number: TEKTT1155

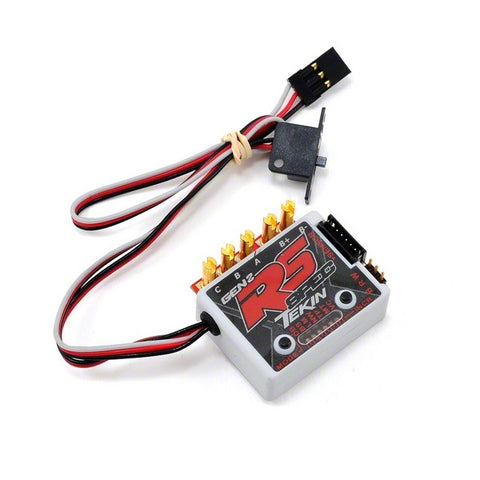

This is the Tekin RS Gen 2 Spec D2 Brushless Electronic Speed Control.
FEATURES
Compatible with sensored, sensorless, brushless, and brushed motors
True ROAR spec mode only, no timing or boost features available
High voltage programmable Battery Eliminator Circuit (BEC)
HotWire PC interface for advanced programming and updating, EZ access
programming port (HotWire Interface (TEKM1450), and Gen 2 Adaptor
(TEKM3825) required)
Forward, brake, and reverse operation
D2 Dual Drive Mode technology
On-board temperature indicator
Sensor plug for precise commutation with all motors
Gold plated solder posts
Pit tune mode
HDAC: High Density Copper PCB's
Self test diagnostics and factory reset
DGF2 Digital Glitch Filtering V2
QuickTune programming with one-touch radio calibration
120 day limited warranty through Tekin beginning at date of purchase
INCLUDES
RS Gen 2 Spec D2 Brushless ESC with Instructions, Motor and Receiver
Wires
SPECIFICATIONS
Input Voltage: 4-7 cells, 2S LiPo
BEC: 6.0V, 3.7amps
Brushless Mode Motor Limit: 13.5 turn, 540 2-pole (36mm)
Brushed Mode Motor Limit Forward Only: 20 turn silver can
Brushed Mode Motor Limit Reverse: 20 turn silver can
Max Current: 120amps per phase
Timing Profiles: 7 choices on-board
Brushed Modes: Fwd Only, Fwd/Rev, Rev Delay
Brushless Modes: Fwd Only, Fwd/Rev, Rev Delay
Dimensions: 1.0 x 1.3 x .51" (25.4 x 33 x 12.9mm)
Weight: .80oz (22.5g)
