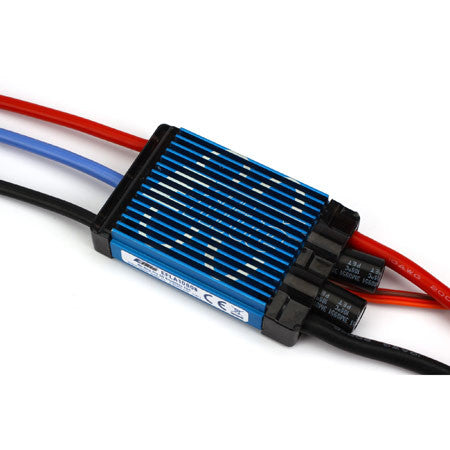

EFLITE 80-Amp Pro Switch-Mode BEC Brushless ESC, EC5 (V2)
EFLA1080B
Item Number: EFLA1080B
Features:
Up to 80 amps continuous current with proper air flow and 100 amps burst current (15 seconds)
5V switch-mode BEC capable of 5 amps continuous current with 6 amps max burst on any recommended input voltage
Drive up to 7 analog or 6 digital standard-size servos with the BEC on any recommended input voltage
3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage
Programmable motor braking
Safe power-arm mode prevents accidental starts
Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltage
Programmable throttle input range (1.1ms–1.9ms or 1.2ms–1.8ms)
Programmable soft start-up rate - .25 second or 1 second
Auto motor shut down if signal is lost or there is interference
Programmable timing—5 user-selectable ranges–use with a large variety of brushless motors
Two operating modes–Airplane or Heli
Pre-wired connectors—E-flite EC5 on battery input and 4.0mm female gold bullets on motor output leads
Overview
When performance matters in your high-current applications, look no further than the E-flite® 80-amp Pro switch-mode ESC. This is a high-quality, efficient sensorless brushless electronic speed control with an integrated switch-mode BEC. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication. It is capable of up to 80 amps continuous current when using 3- to 6-series Li-Po battery packs. You can drive up to 7 analog or 6 digital standard-size servos with the BEC on any recommended input voltage. Featuring an exposed, finned heat sink aluminum case with lightweight plastic end-caps, safe power-arming along with advanced programmable features such as low voltage cutoff, braking, timing, throttle input range and more, the E-flite 80-amp Pro switch-mode ESC is truly a ‘pro series’ electronic speed control.
This product is not intended for use by children under 14 years of age without direct adult supervision.
Specifications
Forward: Yes
Brake: Yes
Time Delay Brake: Yes
Continuous Maximum Current: 80A
Input Connector Types: EC5, 10AWG
Output Connector Types: 4mm gold bullet, 12AWG
Momentary Peak Current: 100A (15 seconds) Proper Cooling Required
Length: 3.0 in (77mm)
Width: 1.6 in (41mm)
Height: 0.62 in (15.5mm)
Weight: 3.75 oz (106 g)
BEC Voltage: 5.5 Volt switch-mode
Overload Protection: Yes
Wire Gauge: 10 awg input leads; 12 awg output leads
Cells w/BEC: 9- to 18-cell Ni-MH, 3–6S Li-Po
Auto Cutoff: Yes
Features:
Up to 80 amps continuous current with proper air flow and 100 amps burst current (15 seconds)
5V switch-mode BEC capable of 5 amps continuous current with 6 amps max burst on any recommended input voltage
Drive up to 7 analog or 6 digital standard-size servos with the BEC on any recommended input voltage
3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage
Programmable motor braking
Safe power-arm mode prevents accidental starts
Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltage
Programmable throttle input range (1.1ms–1.9ms or 1.2ms–1.8ms)
Programmable soft start-up rate - .25 second or 1 second
Auto motor shut down if signal is lost or there is interference
Programmable timing—5 user-selectable ranges–use with a large variety of brushless motors
Two operating modes–Airplane or Heli
Pre-wired connectors—E-flite EC5 on battery input and 4.0mm female gold bullets on motor output leads
Overview
When performance matters in your high-current applications, look no further than the E-flite® 80-amp Pro switch-mode ESC. This is a high-quality, efficient sensorless brushless electronic speed control with an integrated switch-mode BEC. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication. It is capable of up to 80 amps continuous current when using 3- to 6-series Li-Po battery packs. You can drive up to 7 analog or 6 digital standard-size servos with the BEC on any recommended input voltage. Featuring an exposed, finned heat sink aluminum case with lightweight plastic end-caps, safe power-arming along with advanced programmable features such as low voltage cutoff, braking, timing, throttle input range and more, the E-flite 80-amp Pro switch-mode ESC is truly a ‘pro series’ electronic speed control.
This product is not intended for use by children under 14 years of age without direct adult supervision.
Specifications
Forward: Yes
Brake: Yes
Time Delay Brake: Yes
Continuous Maximum Current: 80A
Input Connector Types: EC5, 10AWG
Output Connector Types: 4mm gold bullet, 12AWG
Momentary Peak Current: 100A (15 seconds) Proper Cooling Required
Length: 3.0 in (77mm)
Width: 1.6 in (41mm)
Height: 0.62 in (15.5mm)
Weight: 3.75 oz (106 g)
BEC Voltage: 5.5 Volt switch-mode
Overload Protection: Yes
Wire Gauge: 10 awg input leads; 12 awg output leads
Cells w/BEC: 9- to 18-cell Ni-MH, 3–6S Li-Po
Auto Cutoff: Yes
