Item Number: EFLM4025A

Features

Equivalent to a 25-size glow engine for sport and scale airplanes weighing 3–5.5 lb (1.4–2.5 kg)
Ideal for 15-size 3D airplanes up to 3.5 pounds (1.6 kilograms)
Ideal for models requiring up to 600 watts of power
High-torque, direct-drive alternative to inrunner brushless motors

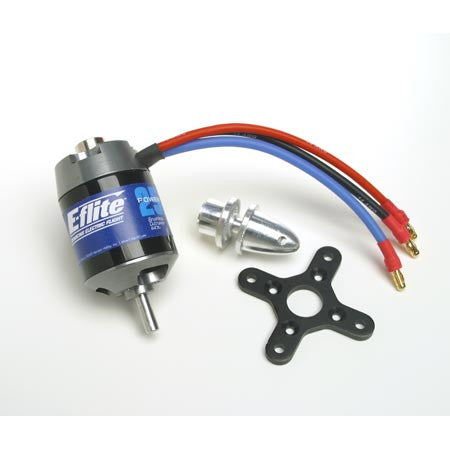

Includes mount, prop adapter and mounting hardware
External radial rotor design—6mm shaft can easily be reversed for alternative motor installations
Slotted 14-pole outrunner design
High-quality construction with ball bearings and hardened steel shaft
Quite, lightweight operation

Overview

The Power 25 is designed to deliver clean and quiet power for 25-size glow engine for sport and scale airplanes weighing 3 to 5.5 pounds (1.4 to 2.5 kilograms), 15-size 3D airplanes up to 3.5 pounds (1.6 kilograms), or models requiring up to 600 watts of power. It's an especially good match for 4- to 5-pound scale airplanes on the market and models such as the Sig Kadet LT-25, Sig Frazer, Lanier Extra 3.25, Global Tequila Sunrise 25 and Great Planes Taylorcraft 20.

Hardware is included with the purchase of this motor.

Tech Notes

Maximum operating temperature: 220 degrees Fahrenheit.

Adequate cooling is required for all motor operation at maximum current levels.

Maximum burst current duration is 15 seconds. Adequate time between maximum burst intervals is required.

You will need...

40–45A brushless ESC
3S–4S Li-Po or 10- to 14-cell Ni-MH/Ni-Cd
11x8 to 14x7 prop

Specifications

Type: Brushless outrunner
Size: Replacement for 25-size glow engine
Bearings or Bushings: One 5 x 14 x 5mm Bearing, and Two 5 x 11 x 4mm Bearings
Wire Gauge: 14
Recommended Prop Range: 11x8 to 14x7
Voltage: 12–16.8
RPM/Volt (Kv): 870
Resistance (Ri): .03 ohms
Idle Current (Io): 2.40A @ 10V
Continuous Current: 32A
Maximum Burst Current: 44A (15 sec)
Cells: 3S-4S Li-Po or 10–14 Ni-MH/Ni-Cd
Speed Control: 40–45A brushless
Weight: 190 g (6.7 oz)
Overall Diameter: 35mm (1.40 in)
Shaft Diameter: 5mm (.20 in)
Overall Length: 54mm (2.10 in)
